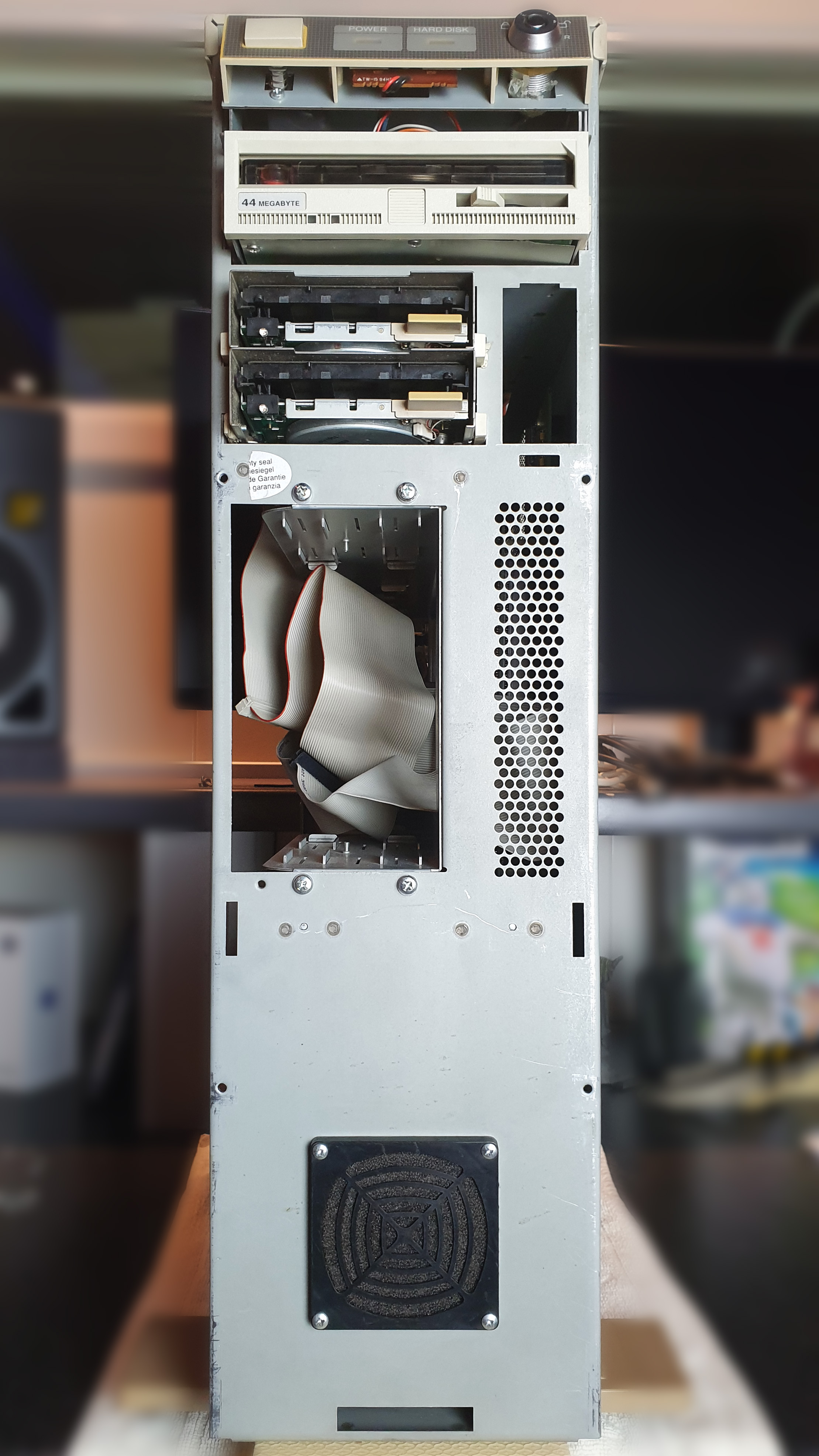

Amiga 3000T

Serial:

From first hand owner [computer shop exhibit]. Currently undergoing full restoration.

• Assembly date probably Dec 21, 1990
• Board: rev. 6.1
• CPU: 68030 @25 MHz [68040 @40MHz on Warp Engine]
• Kickstart: 3.1 V40.68
• RAM: 2MB CHIP | 64MB FAST [on Warp Engine]
• HDDs:
  • QUANTUM DSP-3053L 535MB 3.5″/SL SCSI2 FAST @Warp Engine
  • QUANTUM PRODRIVE ELS 85 S 85MB 3.5″/SL SCSI2 SE @internal SCSI port
• FDD: 2x Chinon FB-357
• Warp Engine accelerator board with 68040 @40MHz
• Picasso II graphics card
• SyQuest SQ555 5,25″ drive 44MB [DH2:]

• Partitions:
  • HDD 1:
    • DH0: System3.1
    • DH1: Work
    • DH2: SyQuest drive
    • DH3: MSDOS5.0 [MS-DOS formatted with Windows 3.1 and other stuff], saved from HDD2
    • DH4: Ersatz
  • HDD2:
    • original DH3: [MSDOS5.0], unchanged

• work performed:
  • battery removed, no damage
  • partition DH3: [MS-DOS5.0] was on 85MB [2nd] hard drive. Did not start. Hard drive repaired and partition transferred to 1st hard drive [535MB], squeezed between DH1: and DH4: by shrinking DH4:.
    Power disconnected from 85MB [2nd] hard drive.
