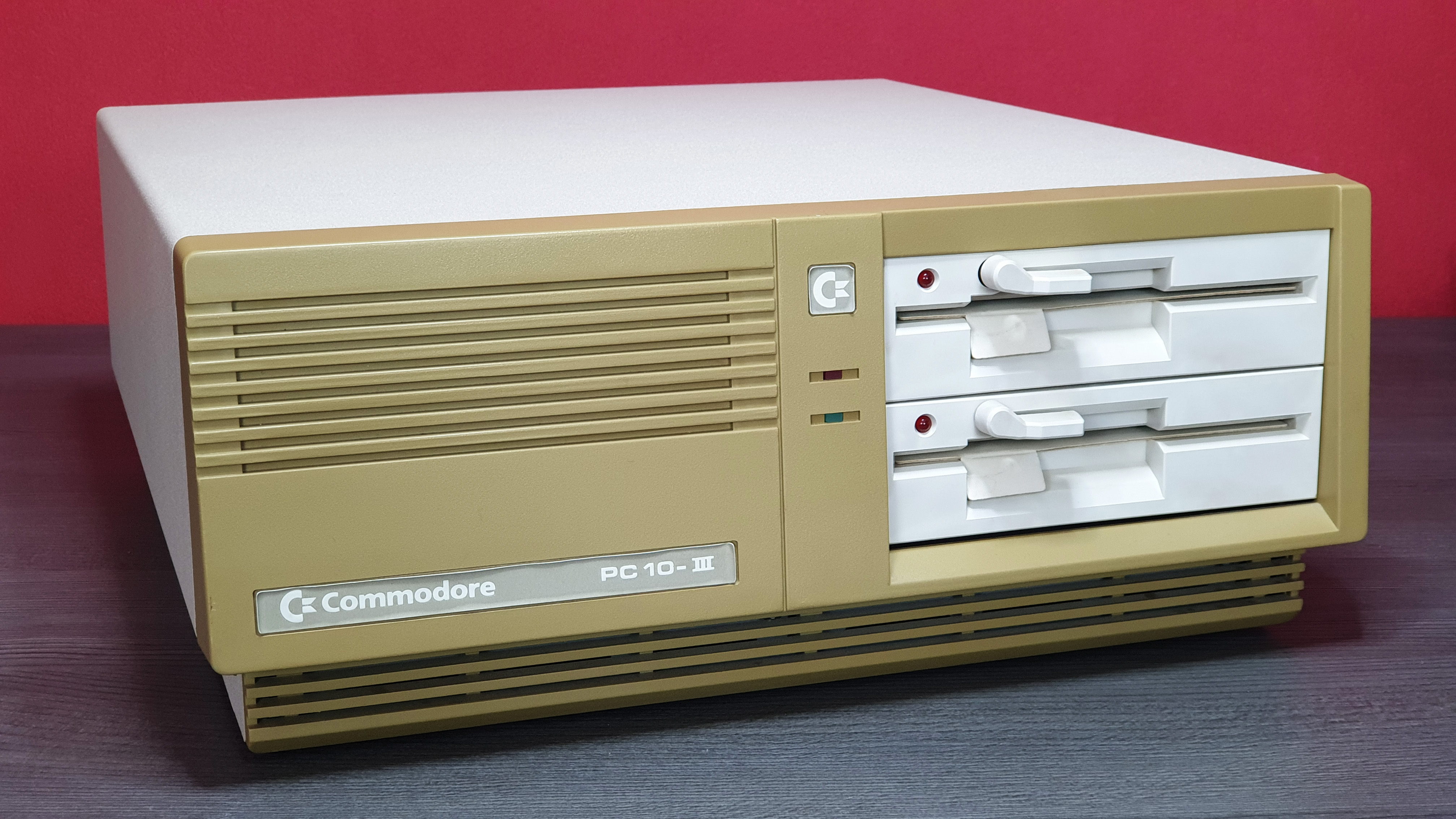

PC 10-III

Serial: 143226

• mainboard revision: 5.9
• CPU: Intel 8088-1 running at 4.77MHz (Standard), 7.16Mhz (Turbo), or 9.54MHz (Double)
• Optional 8087 math co-processor
• RAM: 640KB
• ROM: 32KB Phoenix self-configuring BIOS Version 4.36
• Chipset: Faraday FE2010A single chip controller IC
• Clock: Battery-backed Real Time Clock (RTC) maintains the date and time while the system is powered off
• Floppy Drive: 2x 360K 5.25″ Chinon FZ-502 (SMC FDC9268 controller)
• Sound: On-board piezoelectric beeper
• Ports:
  • 9-pin d-sub bus mouse port compatible with Commodore Amiga 1352 mouse (MOS 5720)
  • 25-pin d-sub RS-232 serial port (Western Digital WD8250-PL)
  • 25-pin d-sub 8-bit Centronics parallel port (Paradise PPC1)
  • DIN-5 IBM PC XT-compatible keyboard port
  • 9-pin d-sub RGBI/Monochrome video port
  • RCA composite video port
• Video: Onboard Paradise PVC4
  • MDA Monochrome Text
  • Hercules Monochrome Graphics
  • CGA Color Text and Graphics
  • Plantronics Colorplus Graphics
  • Alpha132 Monochrome Text
• 3x 8-bit ISA slots for expansion
• 75 watt power supply

• work performed:
  • battery removed, all neutralized and cleaned
  • FDDs disassembled, cleaned and lubricated
  • whole machine completely dismantled and cleaned
  • floppy front bezels bleached
  • one trace above the battery repaired, some VIAs re-tinned
  • mainboard and PSU recapped with Rubycon brand 105° type

• notes:
  • factory sealed, opened for battery removal
  • from father from father
  • with original power cable
