Amiga 2000 “1st” | 002511

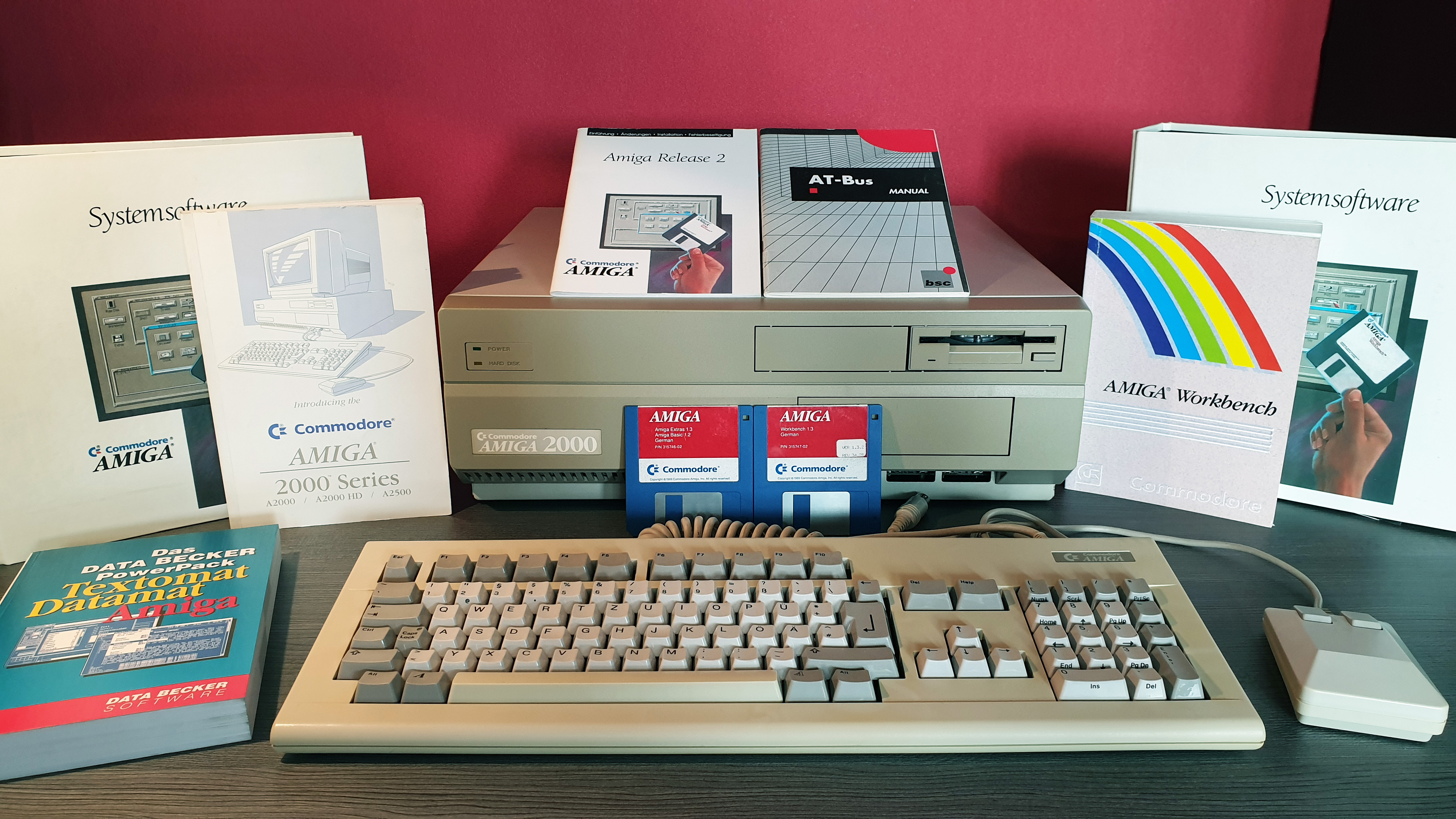

Amiga 2000 “1st”

Serial: 002511

  • CPU: 68000 @7MHz
  • Kickstart: v2.04
  • ECS [Agnus 8375, ECS Denise]
  • RAM: 1MB CHIP | 2MB FAST [on HDD controller]
  • FDD:
    • DF0:Chinon FB-354 | 3,5″ | 880KB | DS/DD
  • HDD: Maxtor 170MB
  • Board revision: 6.x
  • AT-Bus 2008 HDD controller with 2MB ZIP RAM
  • Partitions:
    • DH0: WB
    • DH1: Empty
  • work performed
    • leaky battery removed, usual treatment, VIAs cleaned and reflowed
    • new keyboard connector
    • joystick port pins reflowed, now working again [fire button did not work]
    • FDD disassembled, cleaned and lubricated
    • mainboard power rail caps and PSU recapped with Rubycon 105°
    • corroded and mat areas around the mainboard screws de-corroded
This entry was posted in Amiga.
